Drop frame automated sideloader can be used on manual or automated routes
AND REDUCED OVERHEAD CLEARANCE
PK-FLEX

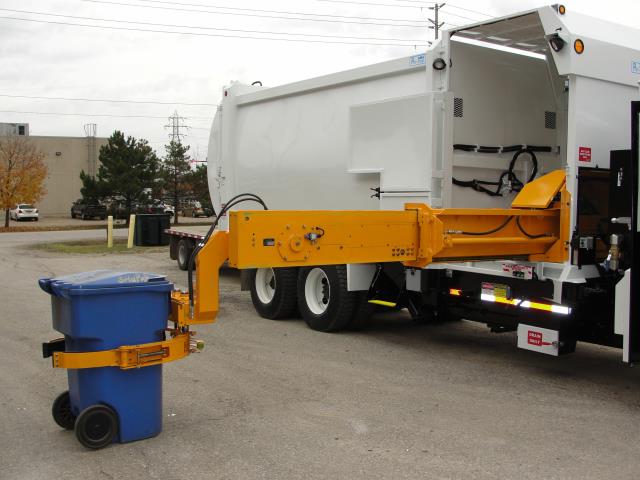

Our Automated Side Loader the "FLEX" is engineered to perform in the most extreme of environments. Shu-Pak Equipment offers two versions of the Pac-King FLEX. The first is a single stream side loader equipped with an 18" deep packer and a low pitch in height. Because our ASL utilizes a drop frame the truck can be used on manual or automated routes. Reducing the trucks in your fleet.
The second shares the same packer but can be split vertically to handle two separate streams.
Available in 40/60, 50/50 and 60/40.
Capacities from 31 to 40 cu. yd
Split body or Single Stream
Various tailgate arrangements
Dual under body hoist cylinders
18" deep packer with 5" ram cylinders and full width crusher panel on Single Stream Dual Crushers on Dual Stream,
Front or transmission mounted Dual Vane pump with hydraulic over speed control
Electronic packer control with multi-cycle capability, switchable between 1-3-8 cycles
with the flip of a switch. No need to reprogram your truck
FEATURES:
R.H. work brake with auto-neutral feature available for chassis equipped with Allison MD transmissions
Cab modifications available for stand up operation R.H. or sit down right hand drive
Top hinged hydraulic tailgate with 2 ½" bore cylinders equipped with throttle valves to prevent sudden descent in the event of hydraulic failure.
Installation to conventional or cab forward chassis
Two valve banks, one frame mounted behind cab to control hoist cylinders with manual over ride and one body mounted to control all other hydraulic functions. This system coupled with use of bulkhead fittings greatly reduces the use of hydraulic hose.
