SIDE LOADING REFUSE COLLECTION VEHICLES WITH TWO STREAMS SPLIT HORIZONTALLY FOR UNPARALLELED ON ROUTE STABILITYARANCE
PK-II

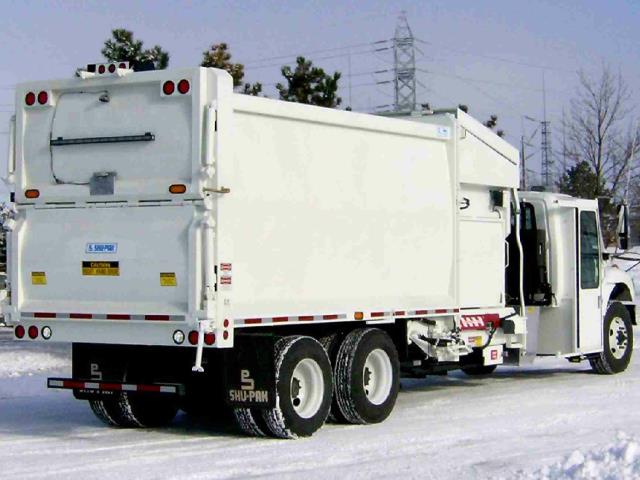

The Pac-King II has two compartments split horizontally with separate packers for each compartment. The lower packer is equipped with a crusher panel and high compaction ram cylinders while the upper packer is fed via a full width bucket with an automated canopy and it’s equipped for medium to light compaction. This design allows the vehicle to be adaptable to many different applications such as separation of wet and dry refuse, or commingled recyclables and refuse, or commingled recyclables and newsprint etc. This design also increases the vehicles stability during cornering due to the leveling of the load that happens automatically as the body is packed.
Capacities from 29 to 40 cu. yd
Horizontally split body with various split ratios.
Horizontal tailgate arrangements.
Dual under body hoist cylinders
Upper and Lower 18" deep packer with 5" ram cylinders lower and 4" upper with full width crusher panel on lower and no crusher on upper. Lower hopper approx. 1.4 cu. yd. capacity
Front or transmission mounted Vane or Gear pump with hydraulic over speed control
Electronic packer control with multi-cycle capability, switchable between 1-3-8 cycles
with the flip of a switch. No need to reprogram your truck
FEATURES:
R.H. work brake with auto-neutral feature available for chassis equipped with Allison MD transmissions
Cab modifications available for stand up operation R.H. or sit down right hand drive
Top hinged hydraulic tailgate with 2 ½" bore cylinders equipped with throttle valves to prevent sudden descent in the event of hydraulic failure.
Installation to conventional or cab forward chassis
Two valve banks, one frame mounted behind cab to control hoist cylinders with manual over ride and one body mounted to control all other hydraulic functions. This system coupled with use of bulkhead fittings greatly reduces the use of hydraulic hose.
Upper packer loaded by means of a full width bucket located behind cab
Upper packer has medium to light comp.
